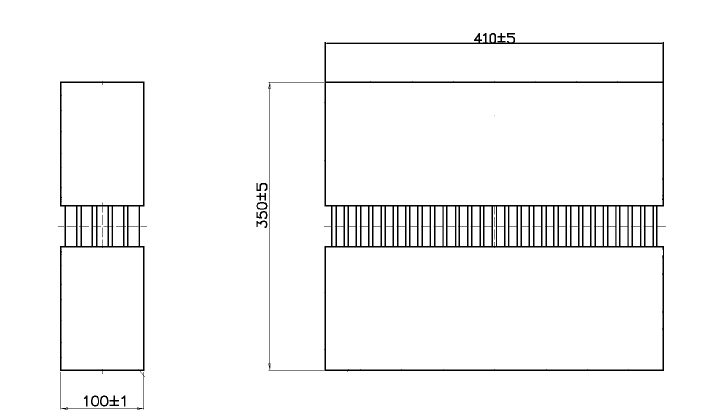

FL2-40000A
Horizontal diverter: HoFL2 ● Rated current: 40000 A ● Rated voltage drop: 75mV ● Product accuracy: 0.5%~5% ● Accept customization
Series：
Keywords：
FL2-40000A
1. High-frequency welding process, more accurate sampling point for screw hole design
2. High reliability, high overload capacity and high product accuracy.
3. Wide temperature range and non-inductive design.
4. Resistance temperature coefficient TCR × 10-6/℃≤50ppm
5. Products meet ROHS requirements
6. The whole series of products comply with the vehicle specification AEC-Q200 test.
1、Product nominal:
| manufacturer | Product range | Rated current | Rated voltage drop | accuracy |
| Ho milliohm electron | FL2 series | 40000A | 75mV | 0.5% |
| Rated Current | 40000A |
| Pressure drop | 75mV |
| AccuracyClass | 0.5% |
| T.C.R ( ppm / ℃ ) | ≤50 |
| Manganese copper material | National standard 6J13 precision manganese copper 50ppm |
| Copper material | national standard T2 Y2 |
| Operating Temperature Range | -55℃~+170℃ |
