PCB Intelligent Shunt

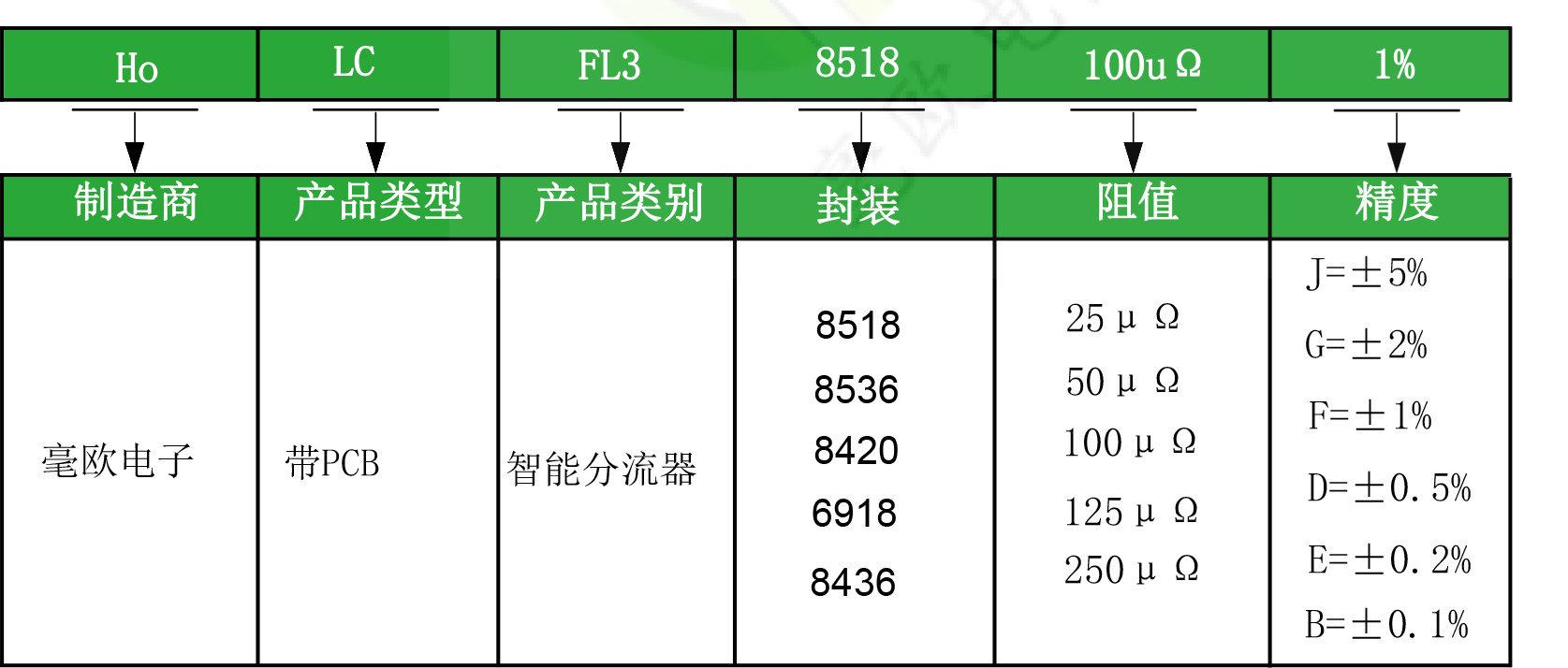

Intelligent diverter: HoLCFL3 ● Rated current: 100A~600A ● Resistance value: 25 μ Ω~250 μ Ω ● Product accuracy: 0.1%~5% ● Accept customization
Series：
Keywords：
PCB Intelligent Shunt
1. High power, ultra-low resistance
2. Low temperature drift
3. Excellent long-term stability
4. High-precision current and temperature acquisition
5. Products meet ROHS requirements
6. The whole series of products comply with the vehicle specification AEC-Q200 test.
1. Product nominal:
| Rated Current | 100A~600A |
| AccuracyClass | 0.2%、0.5%、1%、2%、5% |
| 20 ℃~60 ℃ resistance temperature coefficient T.C.R ( ppm / ℃ ) | ≤25 |
| Manganese copper material | GB 6J12 precision manganese copper |
| Copper material | GB T2 Y2 |
| Operating Temperature Range | -50℃~+170℃ |
