Bare alloy resistance HoBH series: ● Power: 3W~5W ● Resistance value: 0.3mR~3mR ● Accuracy: ± 0.5% ± 1% ± 5% ● Temperature coefficient (TCR): ≤ 50ppm ● Low inductance ● Environmental protection: ROHS ● The product meets the requirements of AEC-Q200 ● Accept customization

Keywords:

HoBH Resistors Series

Details Application Related
Product features:

 1. Electron beam welding process, good welding performance, easy to weld
2. High reliability, high overload capacity, high product accuracy
3. Resistance temperature coefficient TCR (25~50ppm/℃)
4. Products meet ROHS requirements
5. The product meets the requirements of AEC-Q200

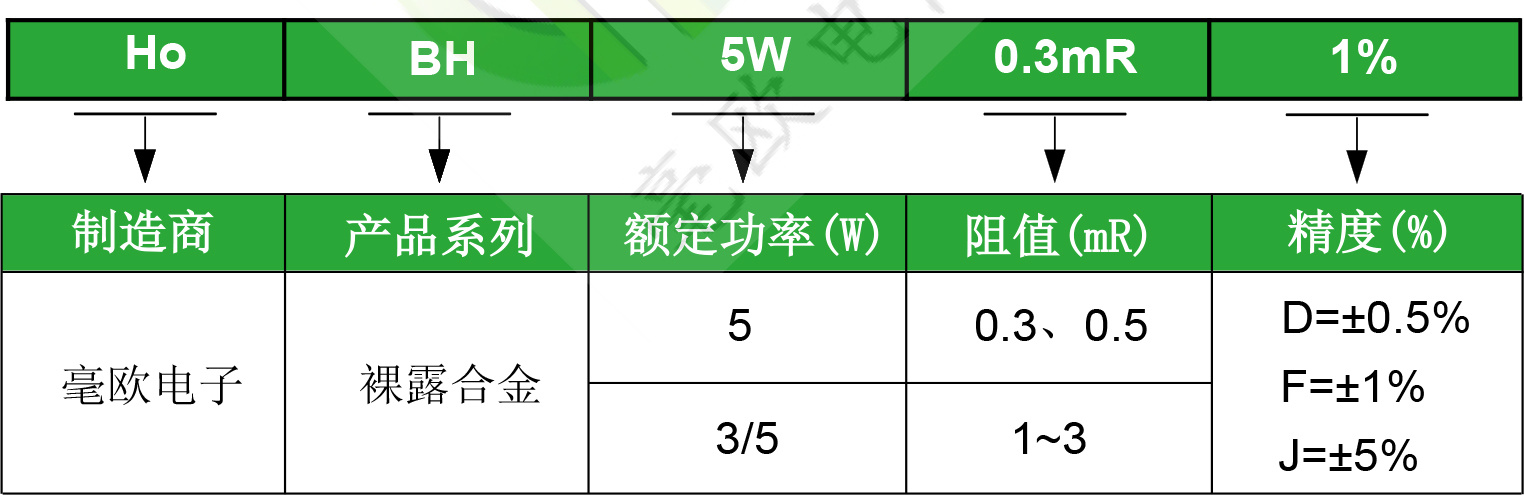

Product model:

1. Product nominal:

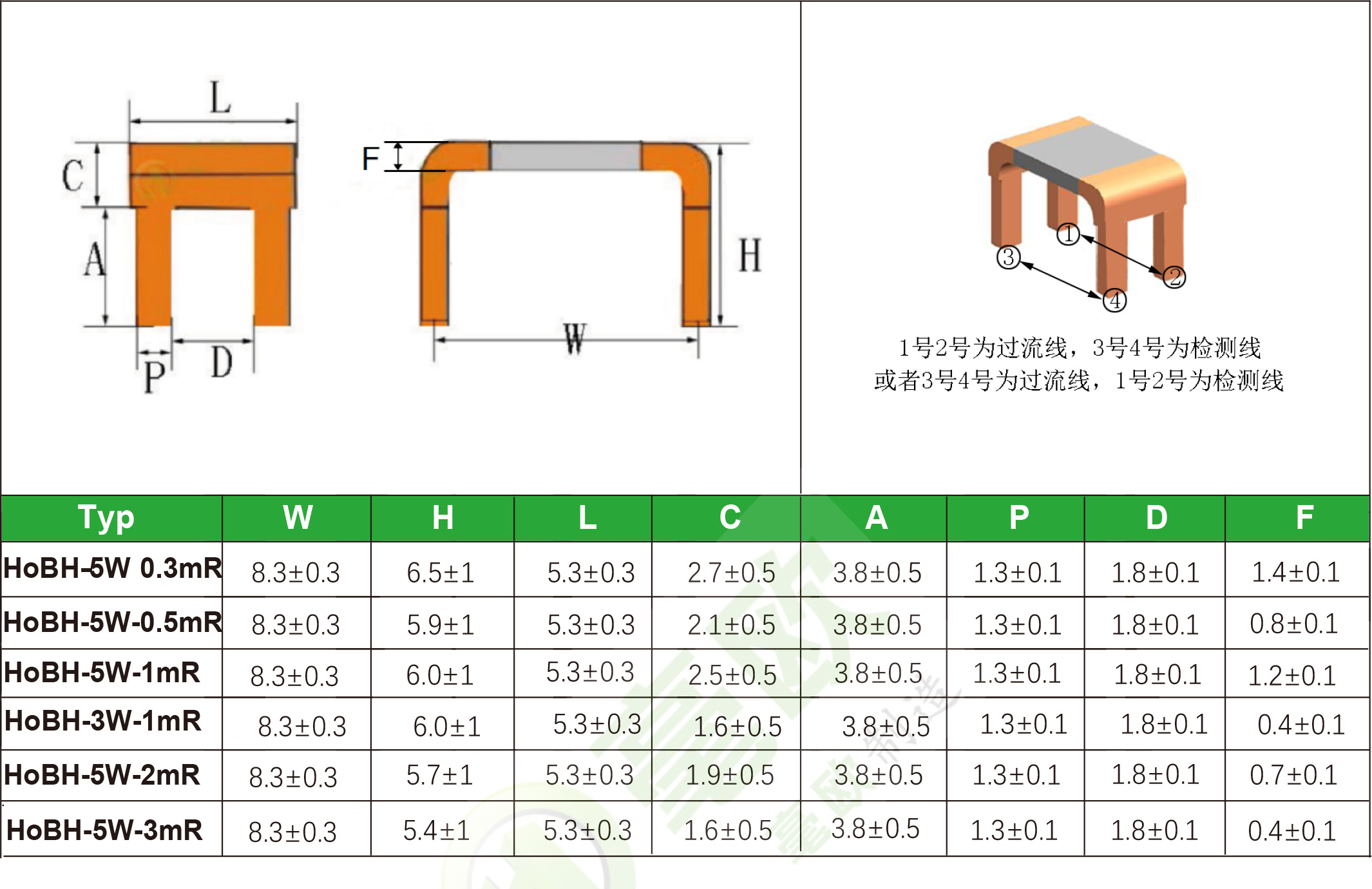

产品尺寸:

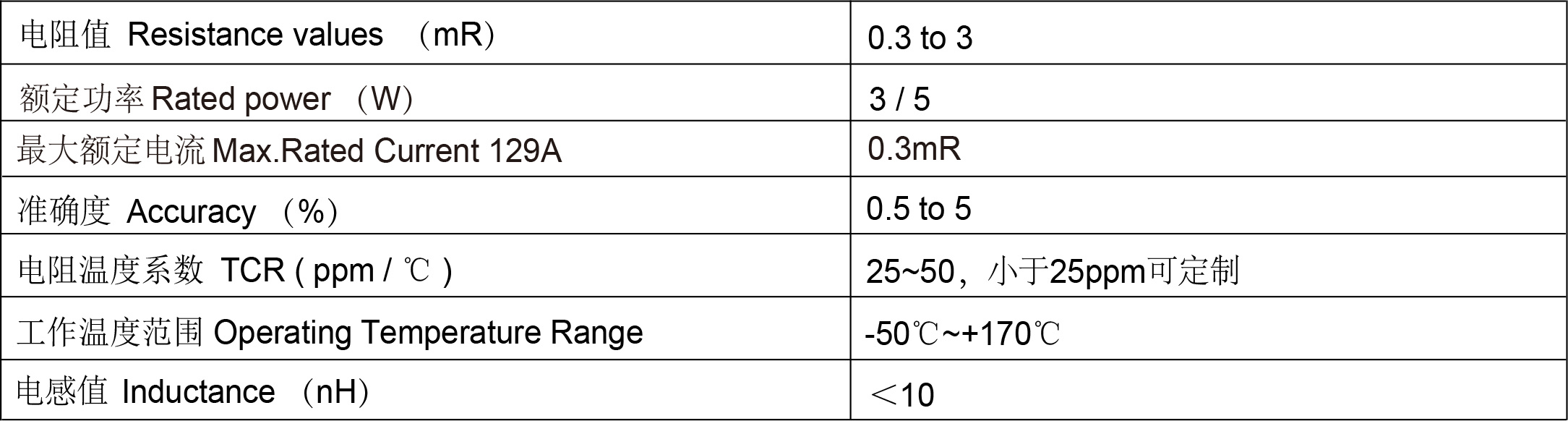

电气性能:
