Plug-in diverter: HoFLQ60 ● Rated current: 10A~250A ● Rated voltage drop: 15mV~100mV ● Product accuracy: 0.5%~5% ● Product foot pitch: 6~24 ● Accept customization

Keywords:

Q60 Plug-In Shunt

Details Application Related
Product features:

1. Electron beam welding process, good welding performance, easy soldering
2. High reliability, high overload capacity and high product accuracy.
3. Use non-inductive design with wide temperature range and inductance less than 10 Ohms
4. Resistance temperature coefficient TCR × 10-6/℃≤50ppm
5. Products meet ROHS requirements

Product model:

1、Product nominal:



Ho FLQ60  100A 50mV 1% 7
manufacturer Product range Rated current(A) Rated voltage drop(mV) Accuracy(%) Foot pitch(mm)
Milliohm electron Q60 10~250 15~100 0.5%~5% 6~24

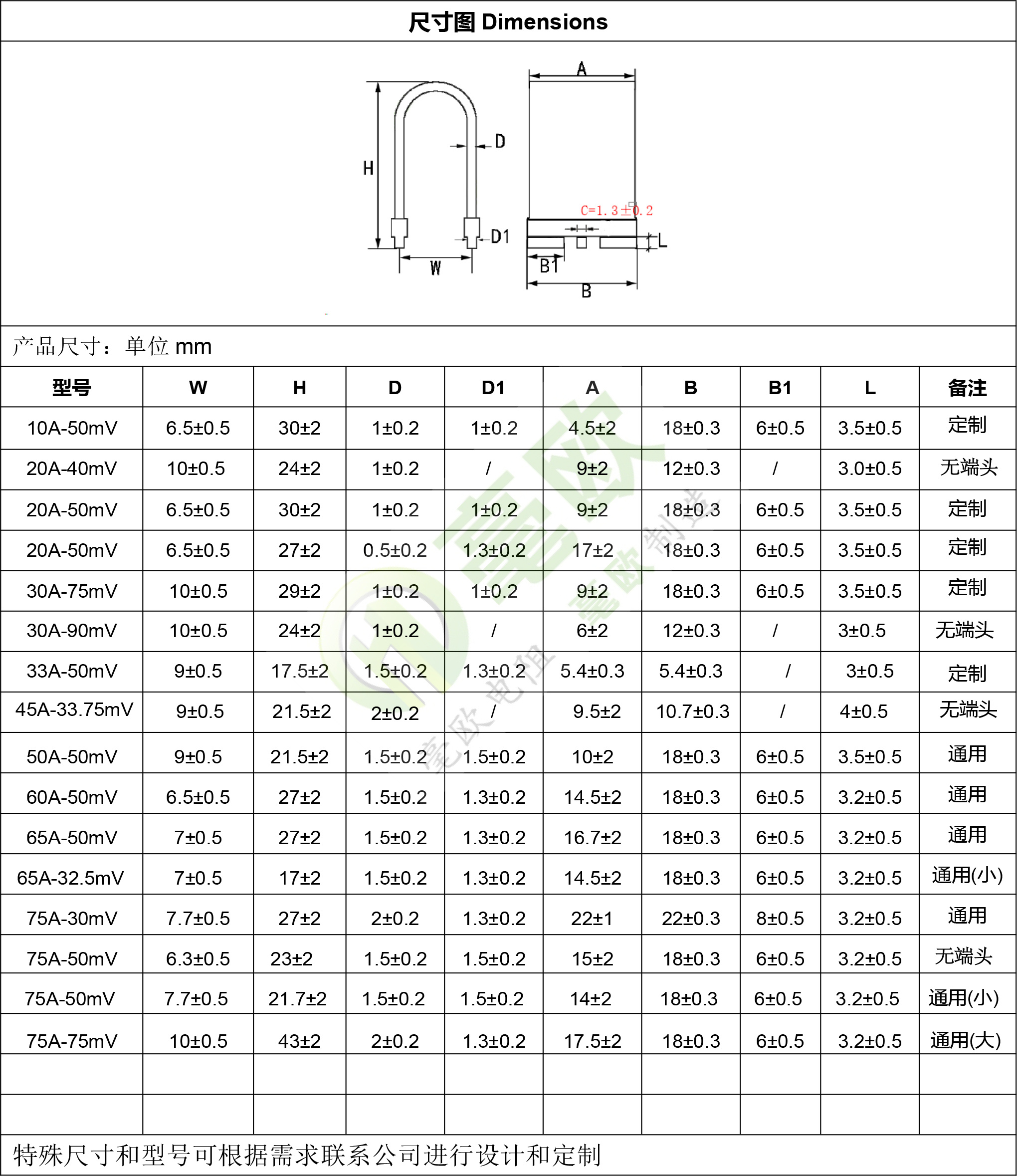

Product size:

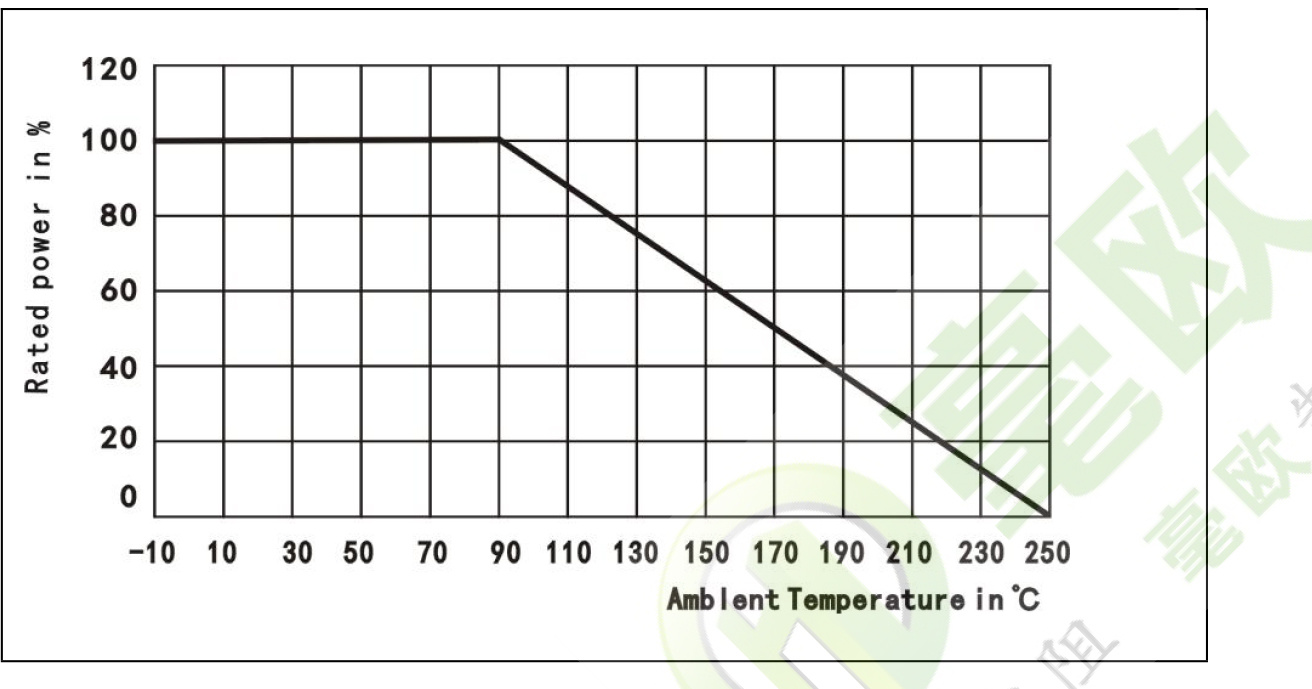

Electrical performance:
