Automobile diverter: HoFL3-6918 ● Rated current: 300A ● Resistance value: 50 μ Ω、100 μ Ω ● Product accuracy: 0.2%~5% ● Accept customization

Keywords:

HoFL3-6918-Type Selection Of Vehicle-Gauge Shunt

Details Application Related
Product features:

1. High precision, high reliability, high overload capacity and high stability
2. High reliability, high overload capacity and high product accuracy.
3. Wide temperature range non-inductive design
4. Resistance temperature coefficient TCR × 10-6/℃≤50ppm
5. Products meet ROHS requirements
6. Passed AEC-Q200 certification

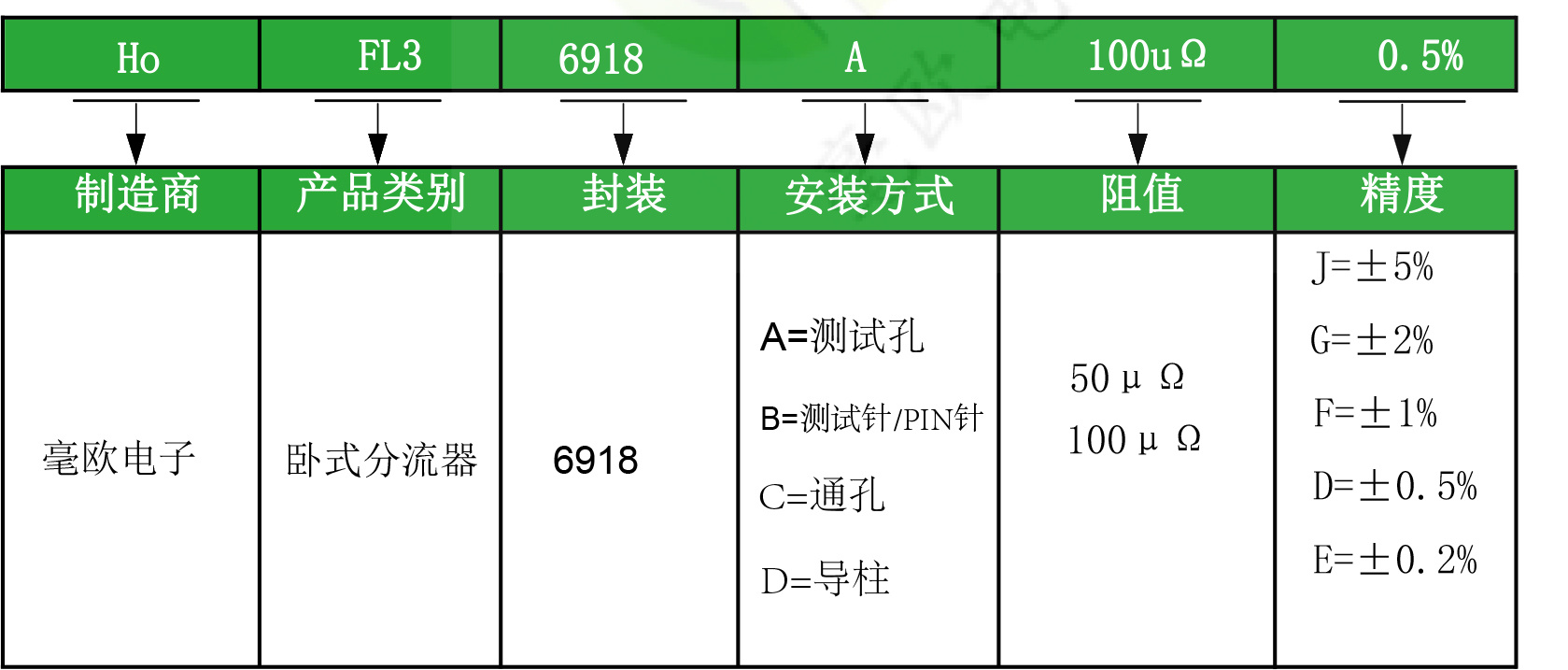

Product model:

1、产品标称:

 HoFL3-6918-A-100μΩ-0.5%

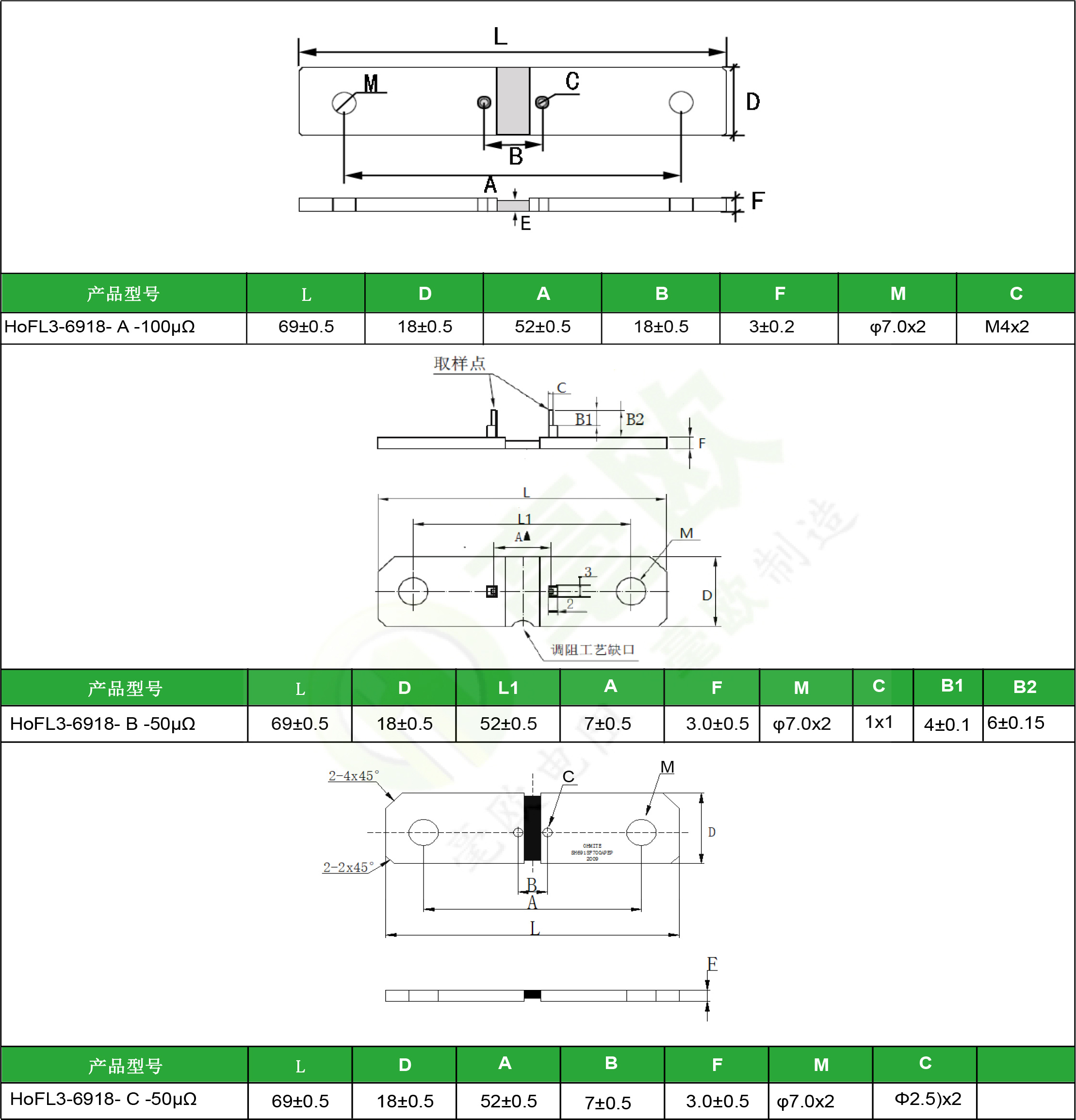

Product size:



Electrical performance:



Rated Current 300A
AccuracyClass  0.2%、0.5%、1%、2%、5%
20 ℃~60 ℃ resistance temperature coefficient T.C.R ( ppm / ℃ )  ≤50
Manganese copper material GB 6J12 precision manganese copper
 Copper material GB T2 Y2
Operating Temperature Range -55℃~+170℃
