Bare alloy resistance HoRS series: ● Package size: 3824/3812 ● Power: 5W, 3W ● Resistance value: 1mR~25mR/2mR~30mR ● Accuracy: ± 0.5% ± 1% ± 5% ● Temperature coefficient (TCR): ≤ 50ppm ● Low inductance ● Environmental protection: ROHS ● The product meets the requirements of AEC-Q200 ● Accept customization

Keywords:

HoRS3812 (3824) Series

Details Application Related
Product features:

1. Electron beam welding process, good welding performance, easy to weld
2. High reliability, high overload capacity, high product accuracy
3. Resistance temperature coefficient TCR (25~50ppm/℃)
4. Products meet ROHS requirements
5. The product meets the requirements of AEC-Q200

Product model:

1. Product nominal:

HoRS3812-3W-10mR-1%

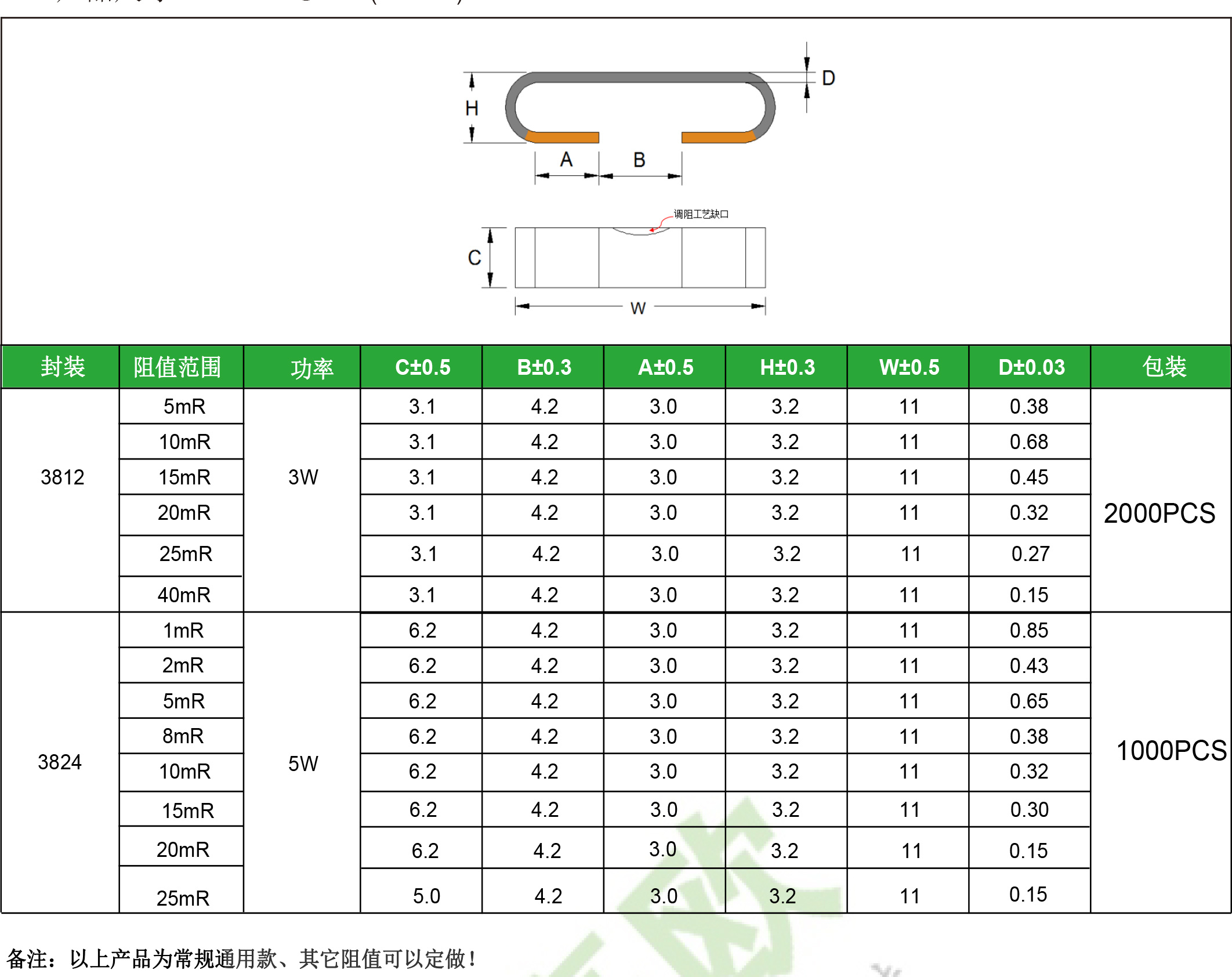

Product size:

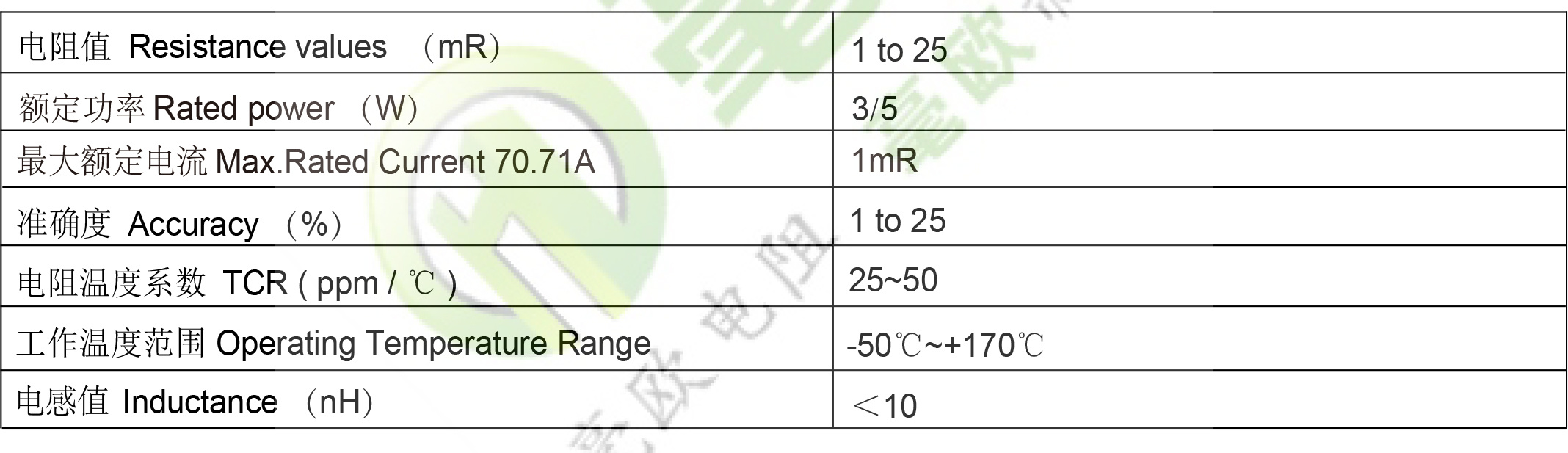

Electrical performance:
