Sealing alloy resistance LR2512 series: ● Power: 1W~3W ● Resistance value: 1mR~500mR ● Accuracy: ± 0.5% ± 1% ± 5% ● Temperature coefficient (TCR): ≤± 50ppm, ± 75ppm ● Meet ROHS requirements and halogen-free requirements

Keywords:

HoLR2512-Sealed Alloy Resistors Series

Details Application Related
Product features:

1. Alloy chip, sealing process, good welding performance
2. High reliability, high overload capacity and high product accuracy.
3. Wide temperature range non-inductive design
4. Resistance temperature coefficient TCR × 10-6/℃±50ppm,±75ppm
5. Comply with ROHS requirements and halogen-free requirements

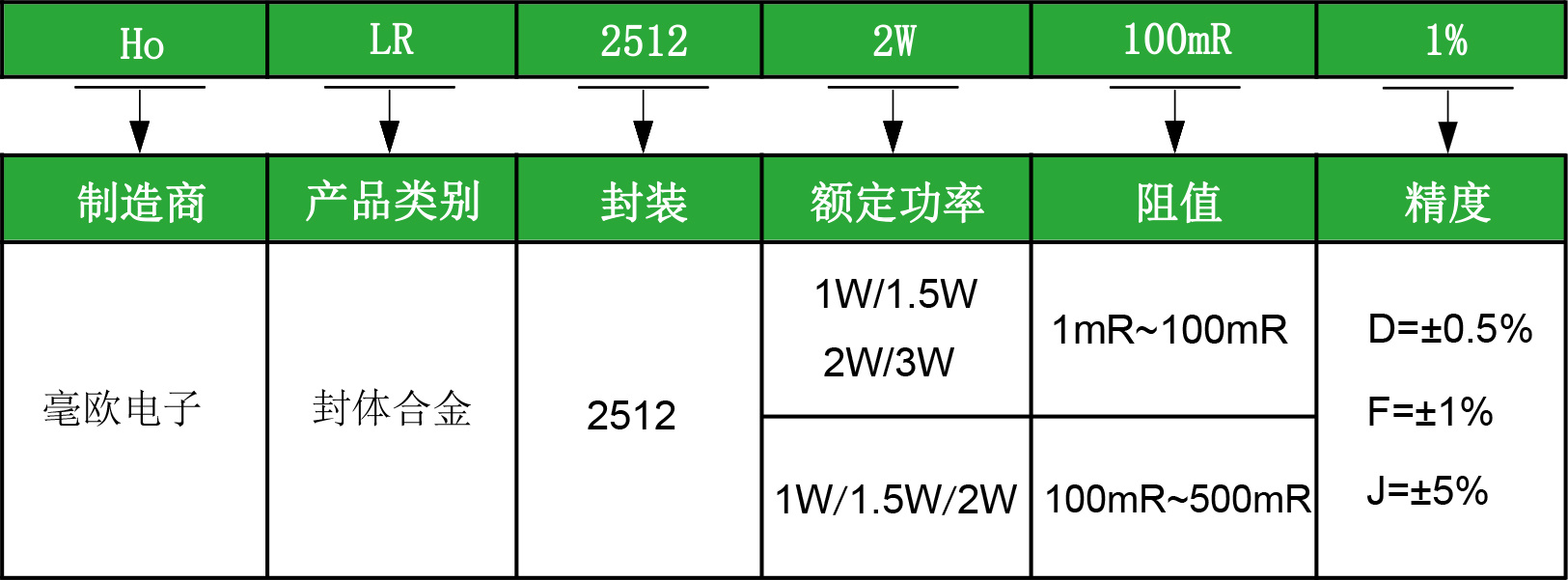

Product model:

1. Product nominal:

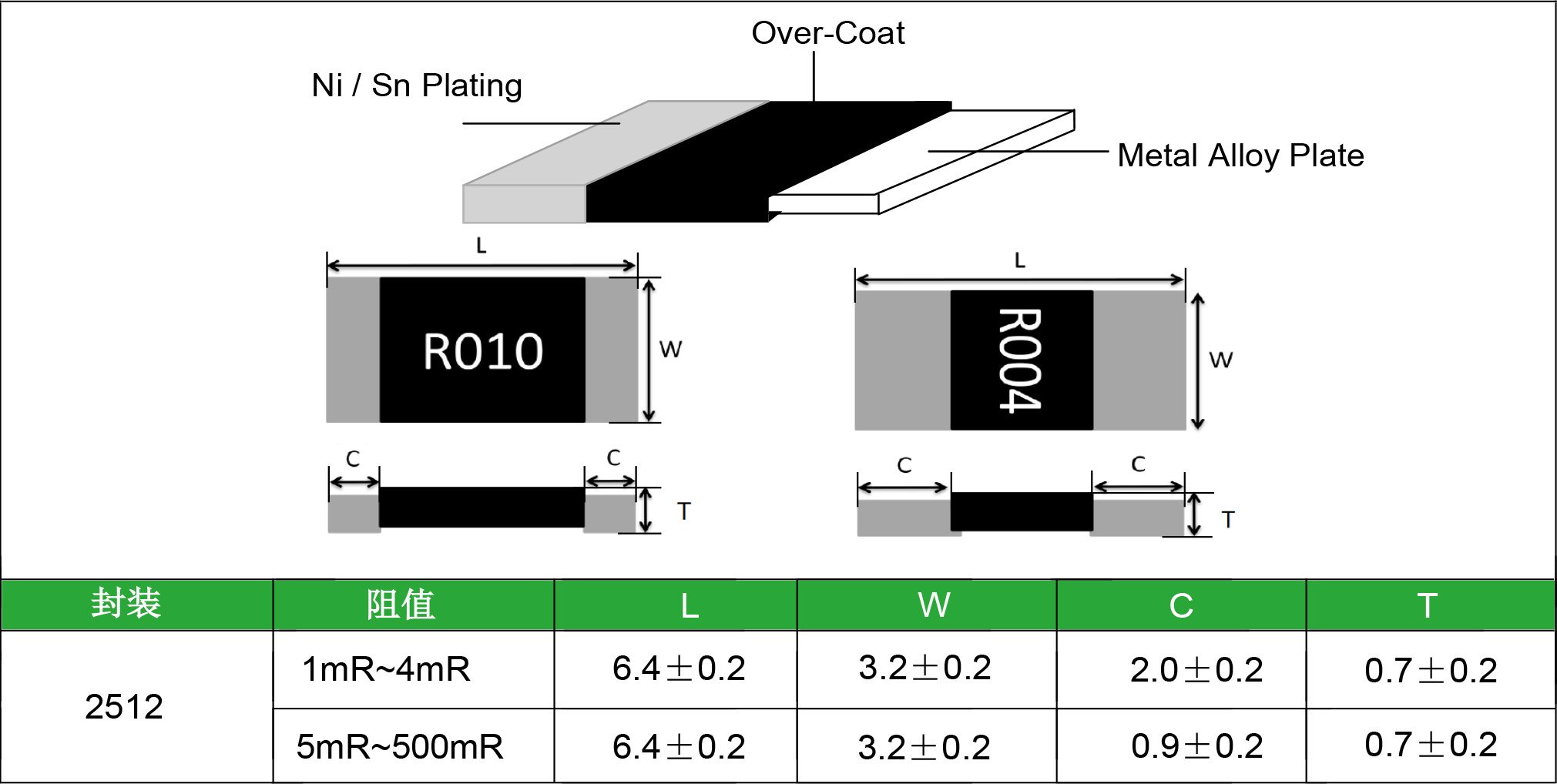

产品尺寸:

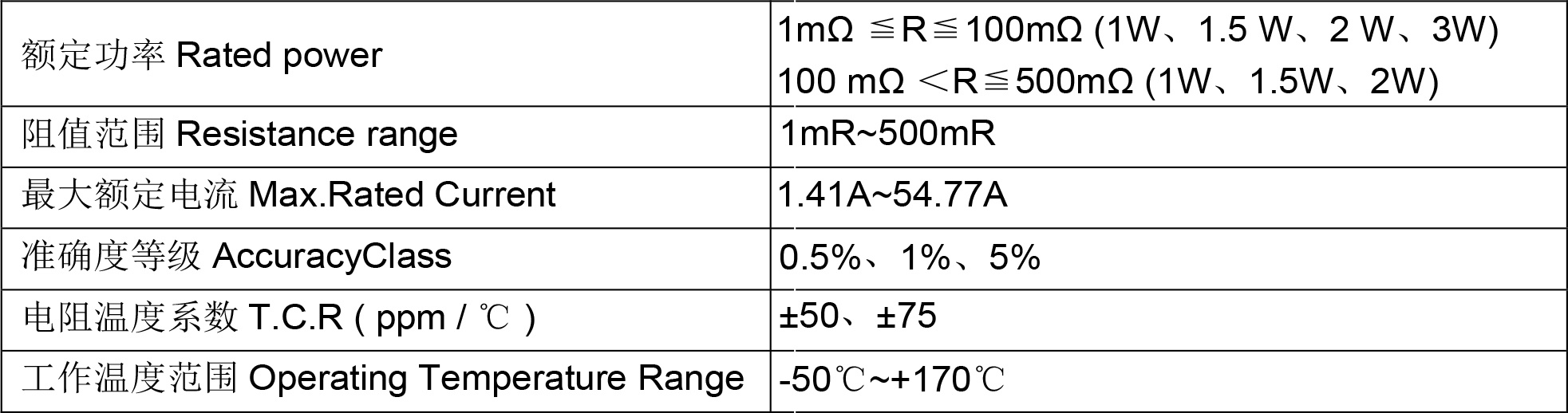

Electrical performance:
