Sealing alloy resistance LR4527DS series: ● Power: 7W ● Resistance value: 0.5mR~100mR ● Accuracy: ± 0.5% ± 1% ± 5% ● Temperature coefficient (TCR): ≤± 25ppm ● Meet ROHS requirements and halogen-free requirements ● The whole series of products comply with the vehicle specification AEC-Q200 test.

Keywords:

HoLR4527DS Sealing Alloy Resistors Series

Details Application Related
Product features:

1. Alloy chip, sealing process, good welding performance
2. High reliability, high overload capacity and high product accuracy.
3. Comply with ROHS requirements and halogen-free requirements
4. The whole series of products comply with the vehicle specification AEC-Q200 test

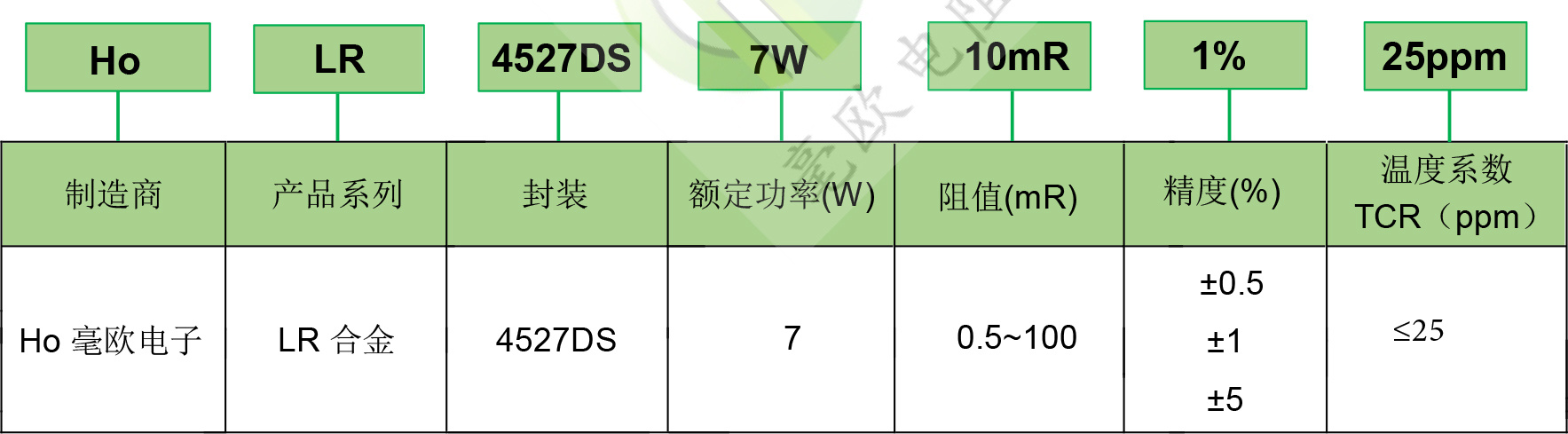

Product model:

1. Product nominal:

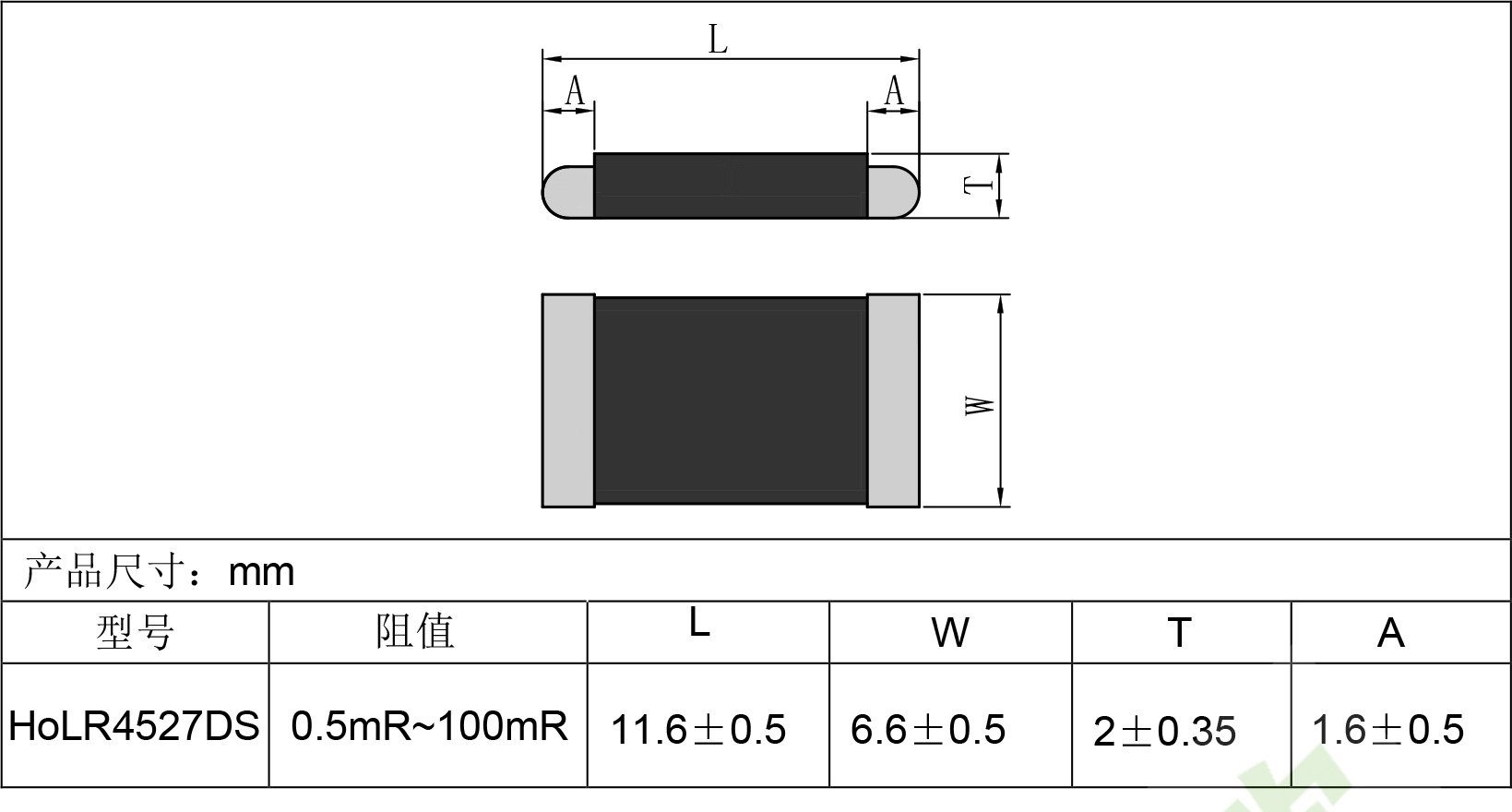

Product size:

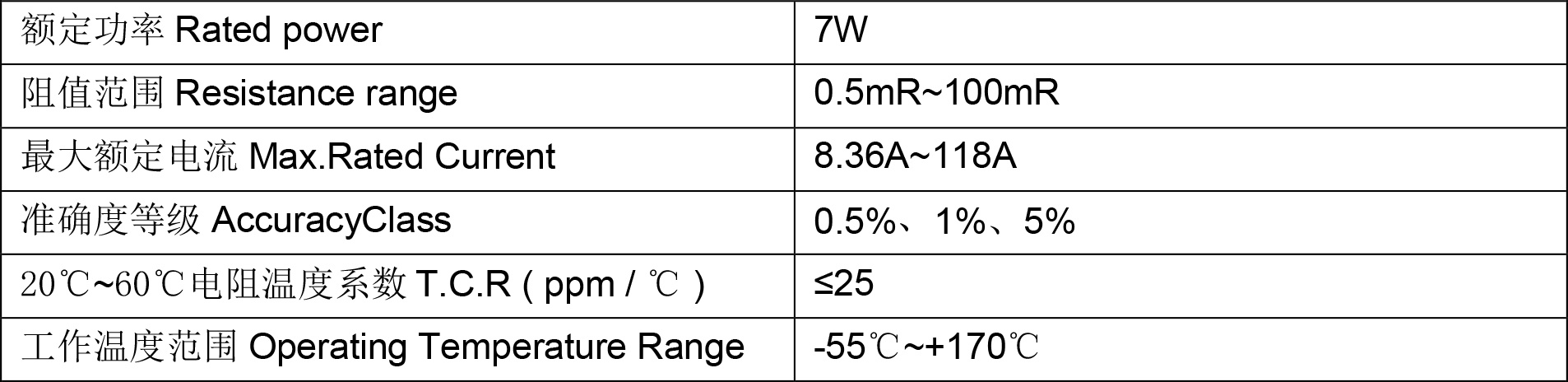

Electrical performance:
