Cross welding resistance: ● Power: 1W~7W ● Resistance: 1mR~100mR ● Span: 10~30mm ● Accuracy: ± 1% 2% 5% ● Temperature coefficient (TCR): ≤ 40ppm ● Product shape: JZ (several characters), M (several characters M) ● Accept customization

Keywords:

Plug-In Resistors

Details Application Related
Product features:

1. Spot welding process, the pins are plated with pure copper, and the welding performance is good,
2. The feet are easy to solder with high reliability, high overload capacity and high product accuracy.
3. Wide temperature range and non-inductive design.
4. Products meet ROHS requirements

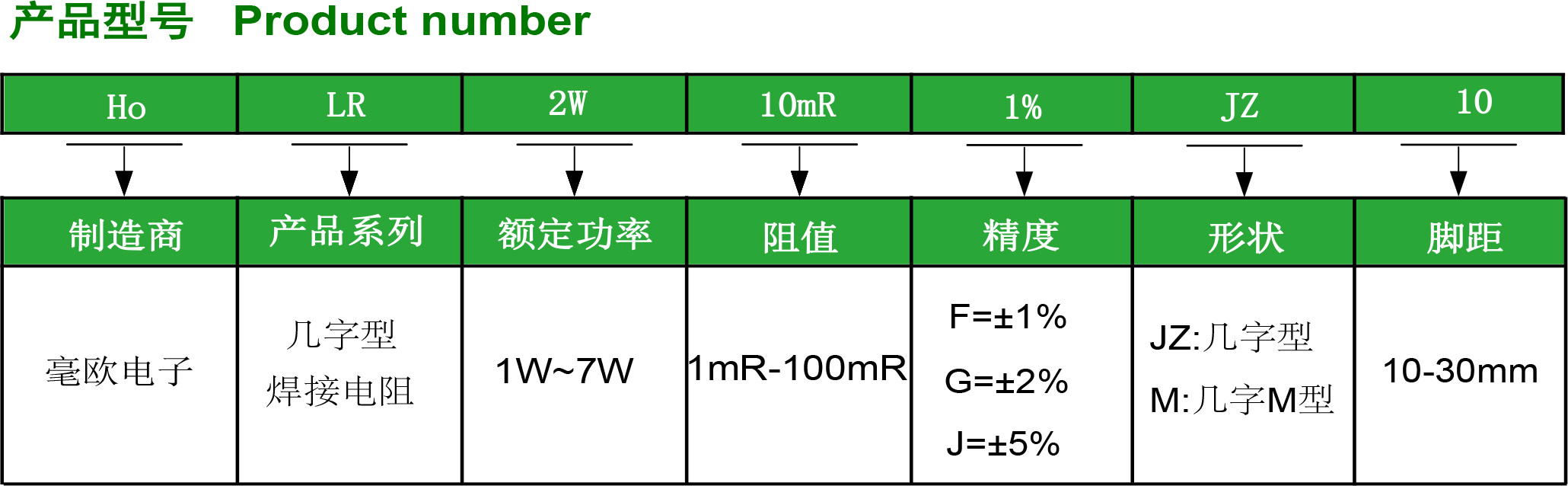

Product model:

1. Product nominal:

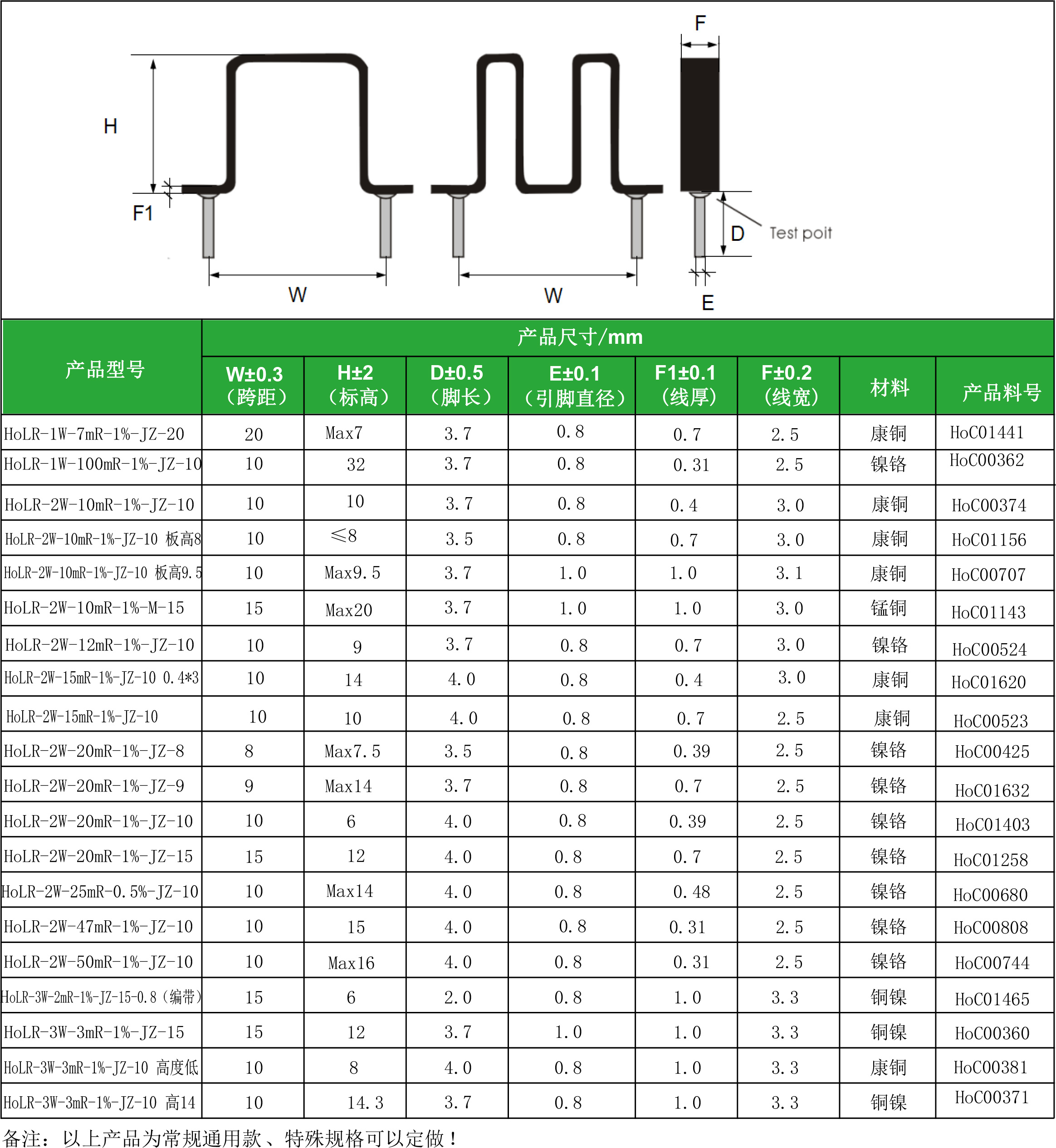

Product size:



Product range:

1. Current sampling, feedback circuit
2. Low inductance circuit, high current pulse circuit
3. Drive technology, power electronics
4. Home appliance control, automotive electronics, communication power supply

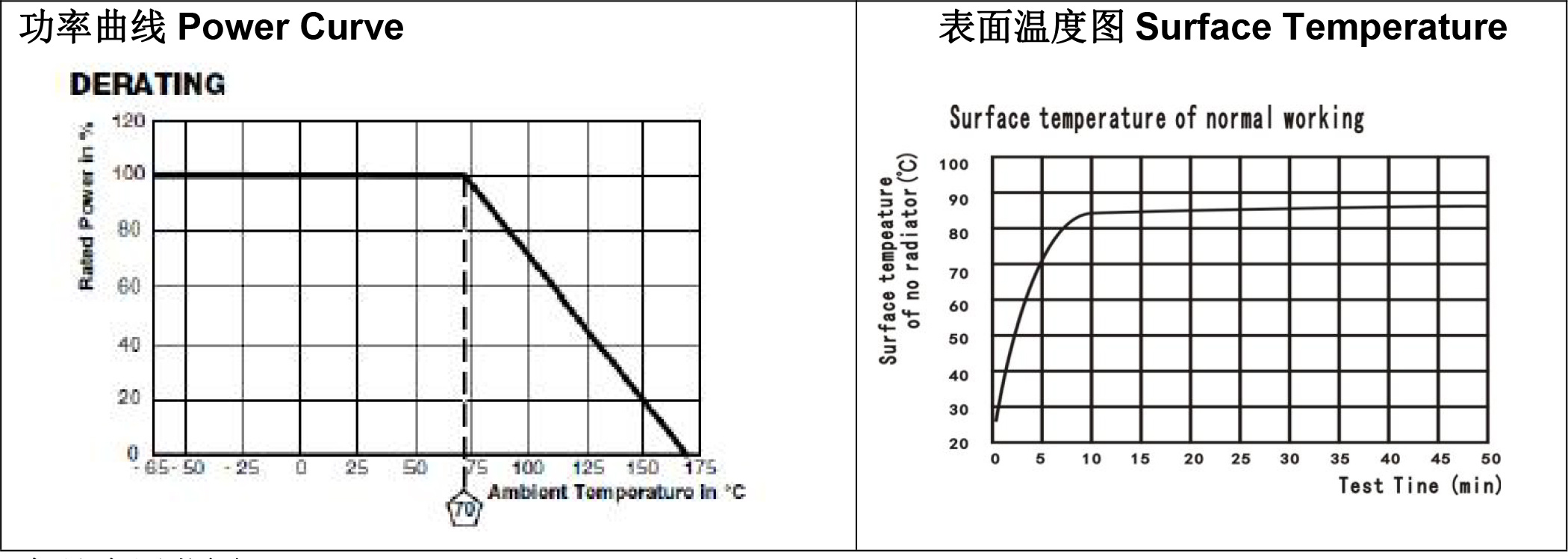

Electrical performance:
