Bare alloy resistance LRS1050 series: ● Power: 5W ● Resistance value: 0.2mR~5mR ● Accuracy: ± 0.5% ± 1% ± 5% ● Temperature coefficient (TCR): ≤± 25ppm, ± 50ppm ● The product meets the requirements of ACE-Q200

Keywords:

HoLRS1050 Bare Alloy Resistors Series

Details Application Related
Product features:

1. Electron beam welding process, good welding performance, easy to weld
2. High reliability, high overload capacity and high accuracy
3. Use non-inductive design with wide temperature range and inductance less than 10 Ohms
4. Products meet ROHS requirements
5. The product meets the requirements of ACE-Q200

Product model:

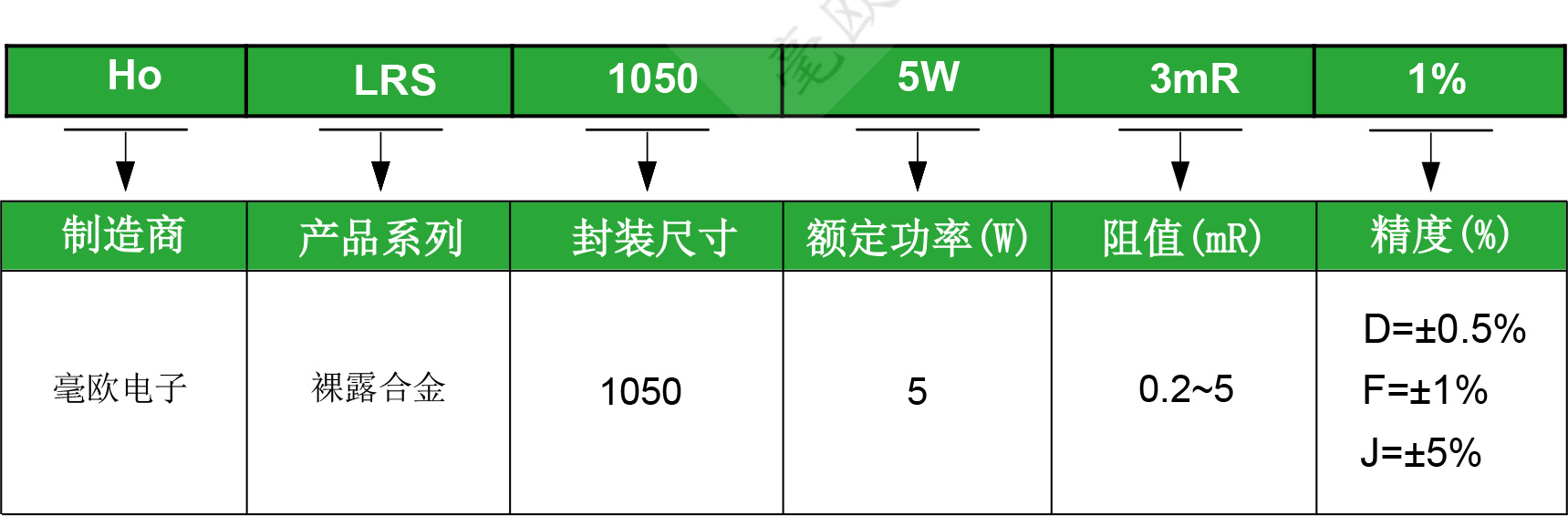

1. Product nominal:

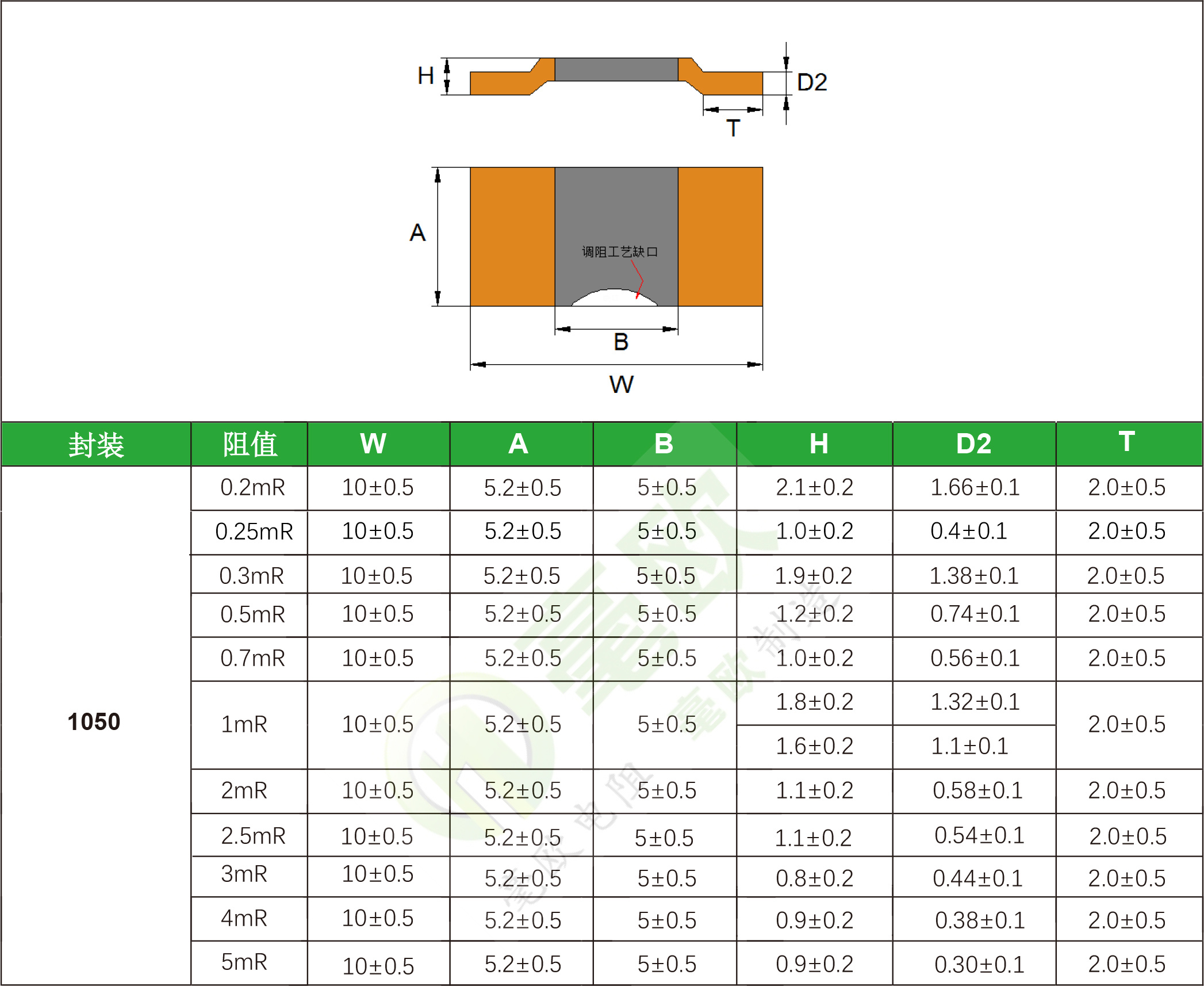

Product size:

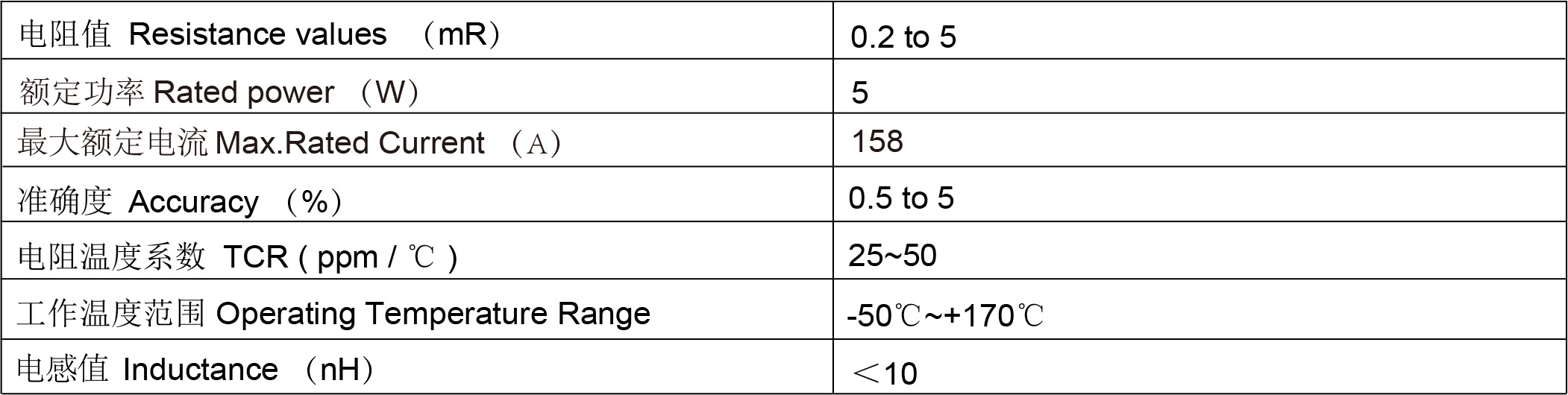

Electrical performance:
