Power resistance: ● Power: 20~50W ● Resistance value: 05mR~10KR ● Accuracy: ± 0.5% ± 1% ± 5% ± 10% ● Temperature coefficient: ± 50, ± 100, ± 200, ± 300, unset (ppm)

Keywords:

TO-220

Details Application Related
Product features:

      1、20 Watts at 25°C case temperature heat sink mounted

      2、TO-220 style power package

      3、Molded case for protection and easy to mount

      4、Electrically isolated case

      5、Non-Inductive design

Product model:

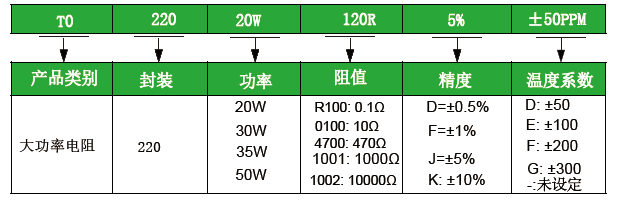

1. Product nominal:

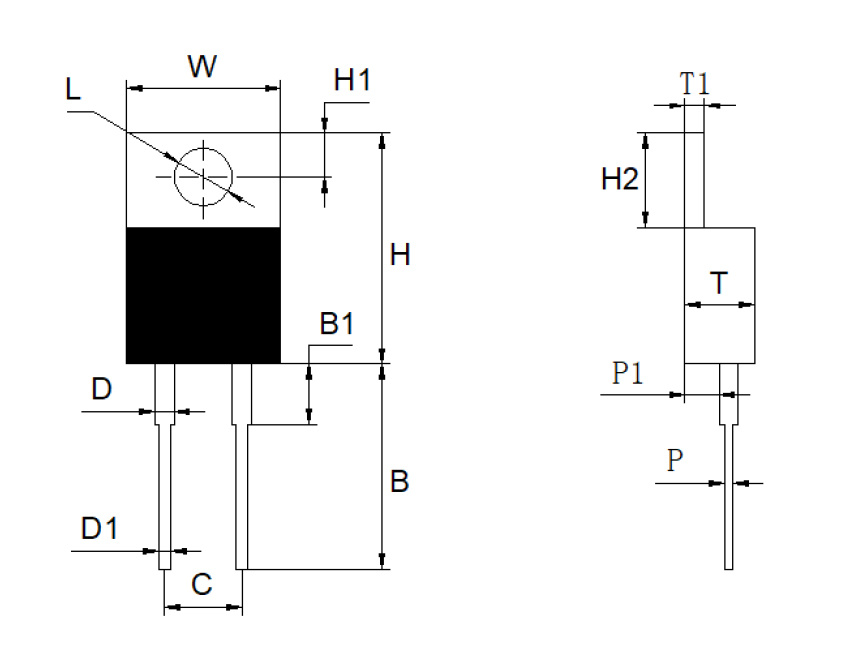

Product size:

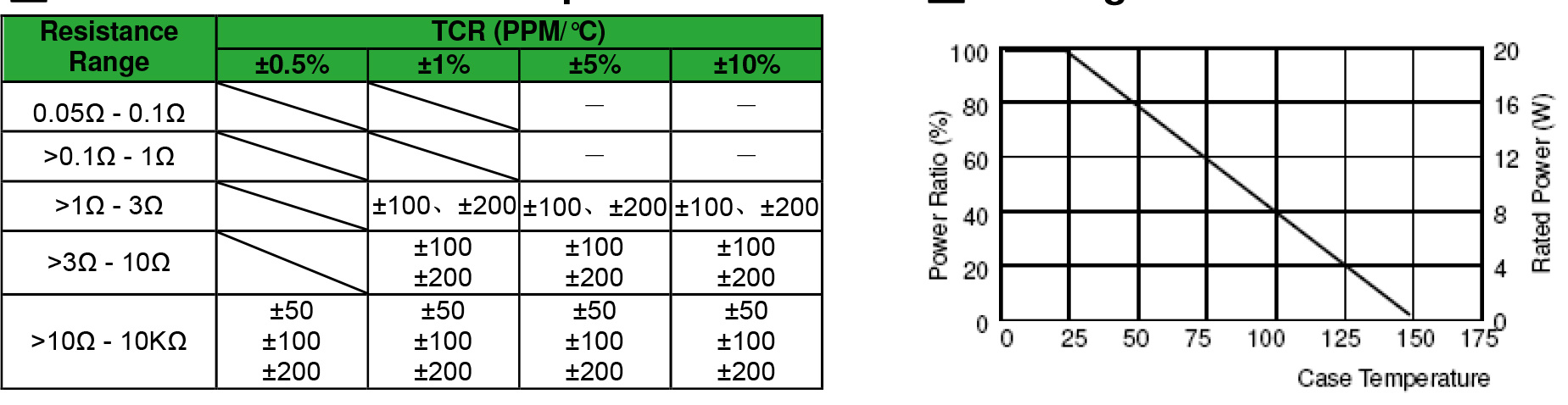

Electrical performance:
