康铜电阻: ●材质: 康铜 ●线径: 0.5~4.0 ●阻值:1mR~500mR ●跨距:5~100mm ●精度 :±3% 5% 10% ●温度系数(TCR):≤50ppm ● 低电感 ● 环保: ROHS REACH ●接受订制

Keywords:

Presser foot type sampling resistor series

Details Application Related
characteristic

1. The presser foot process is convenient for fixing on the circuit board before welding
2. Wide temperature range
3. Non-inductive design, inductance less than 10 Ohms
4. Pin is easy to solder
5. Comply with ROHS REACH requirements
6. Bulk, 2000PCS per package or customized

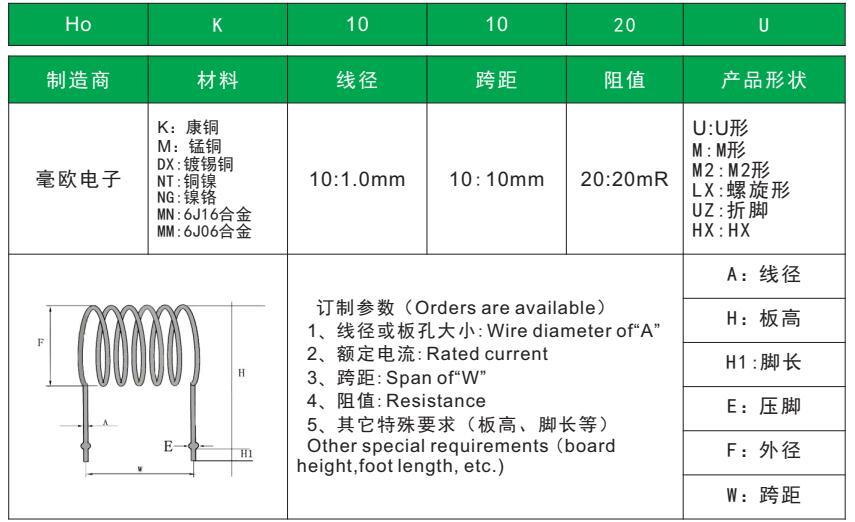

Product model

1. Product name: (similar products: manganese copper wire, tinned copper, copper nickel, etc.)

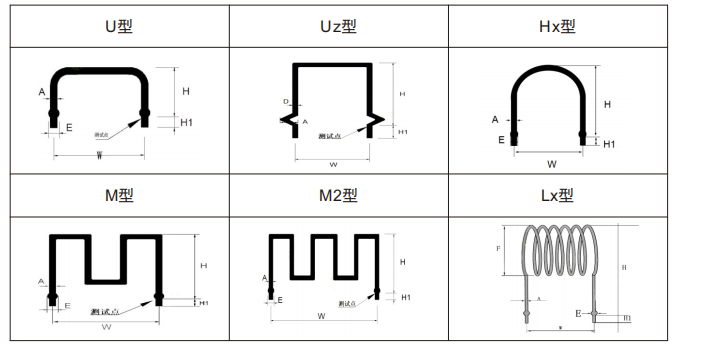

 2、产品形状:

工作特性:
测试条件Test Conditions
阻值最大变化百分比ΔR%
25ºC1000小时Loading life
: 负载工作1000hrs at 25ºC
1%
潮湿环境中放置100小时100 hrs in moisture
1%
-40℃-+150℃温度下循环1000
Temperatur Cycledat-40℃-+150℃
1%

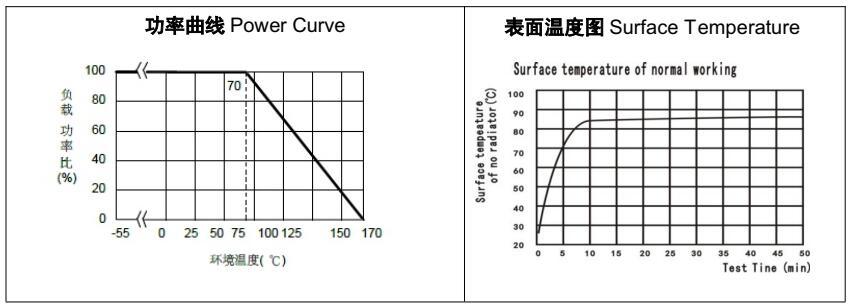

电气性能
