Bare alloy resistance LRS1575 series: ● Power: 7W ● Resistance value: 0.1mR~4mR ● Accuracy: ± 0.5% ± 1% ± 5% ● Temperature coefficient (TCR): ≤± 25ppm, ± 50ppm ● The product meets the requirements of ACE-Q200

Keywords:

HoLRS1575 Dare Alloy Resistors Series

Details Application Related
Product features:

1. Electron beam welding process, good welding performance, easy to weld
2. High reliability, high overload capacity and high accuracy.
3. Use non-inductive design with wide temperature range and inductance less than 10 Ohms
4. Resistance temperature coefficient TCR (25~50 ppm/℃)
5. Products meet ROHS requirements
6. The product meets the requirements of ACE-Q200

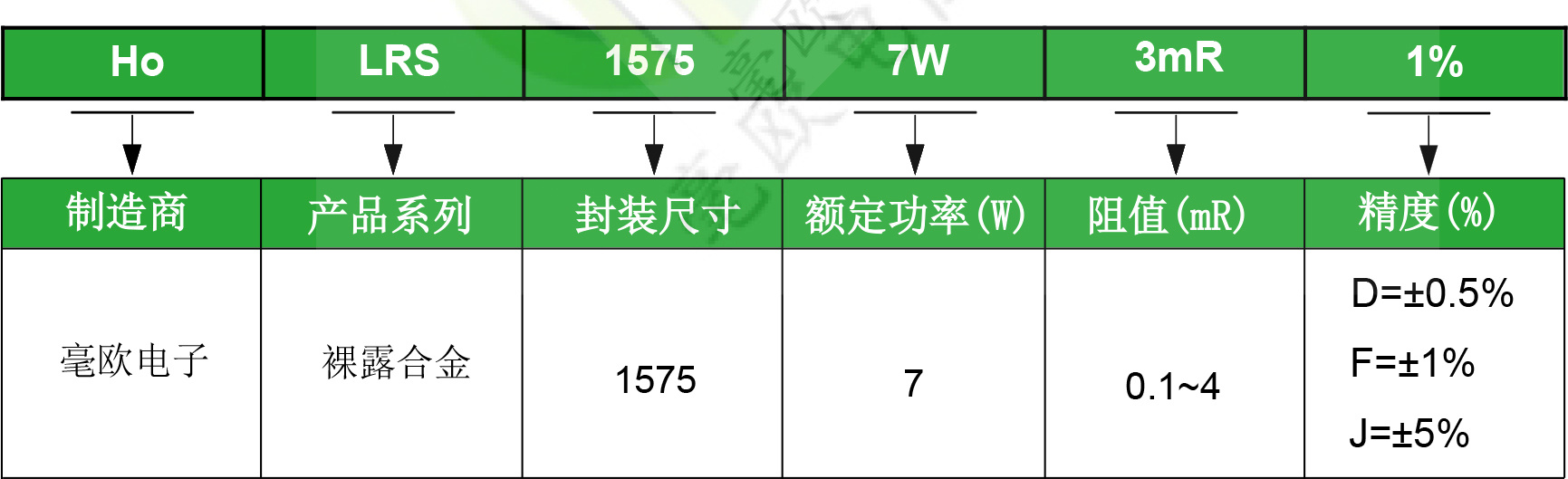

Product model:

1. Product nominal:

Product size:

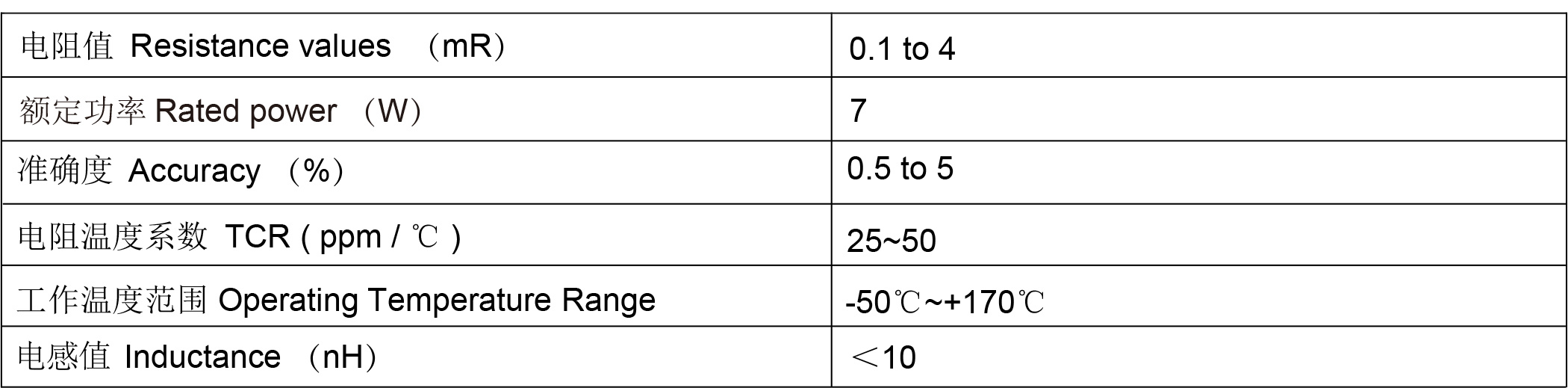

Electrical performance:
