High current patch cord: HoT-D ● Product type: TFe: iron sheet, TCu: copper sheet ● Product length: 5.2~13.2 ● Product type: D-type plastic packaging ● Product resistance: 0 Ω

Keywords:

High Current Patch Jumper 0R Resistors

Details Application Related
Product features:

1. Tin plating of alloy plate, intermediate insulation treatment of plastic sealing process, good welding performance
2. High reliability, high overload capacity, rated current 10-40A
3. Wide operating temperature range - 20~150 ℃, non-inductive design
4. Comply with ROHS requirements and halogen-free requirements

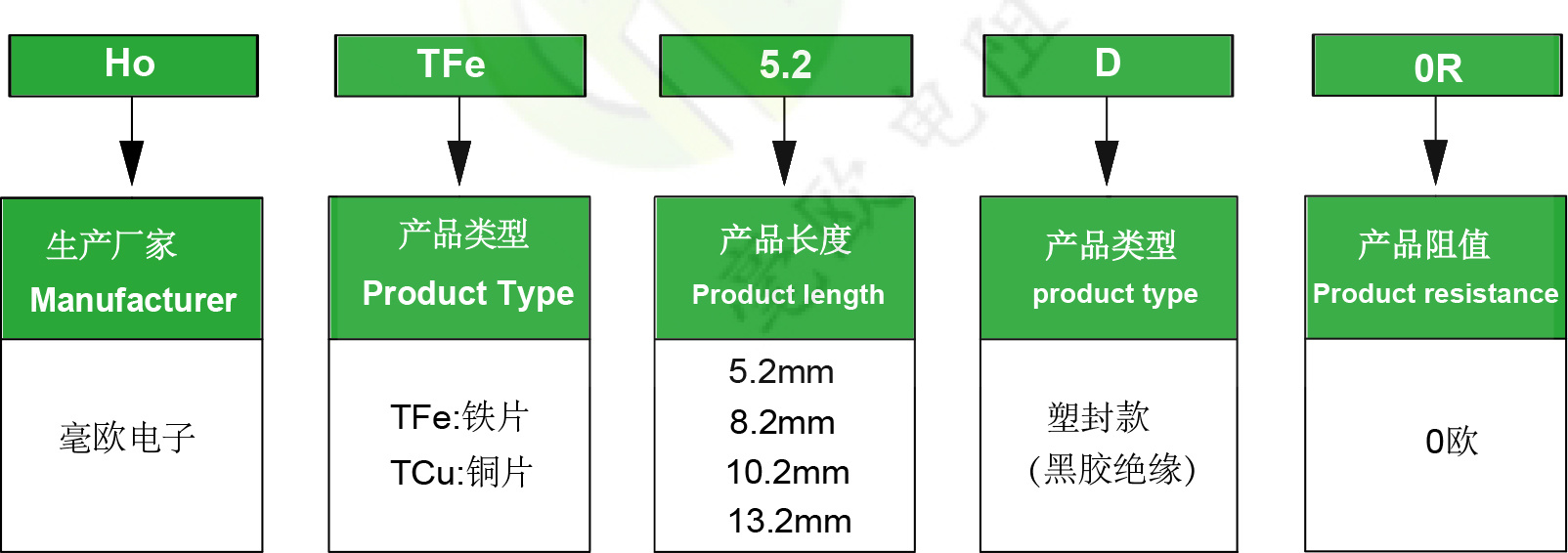

Product model:

1. Product nominal:

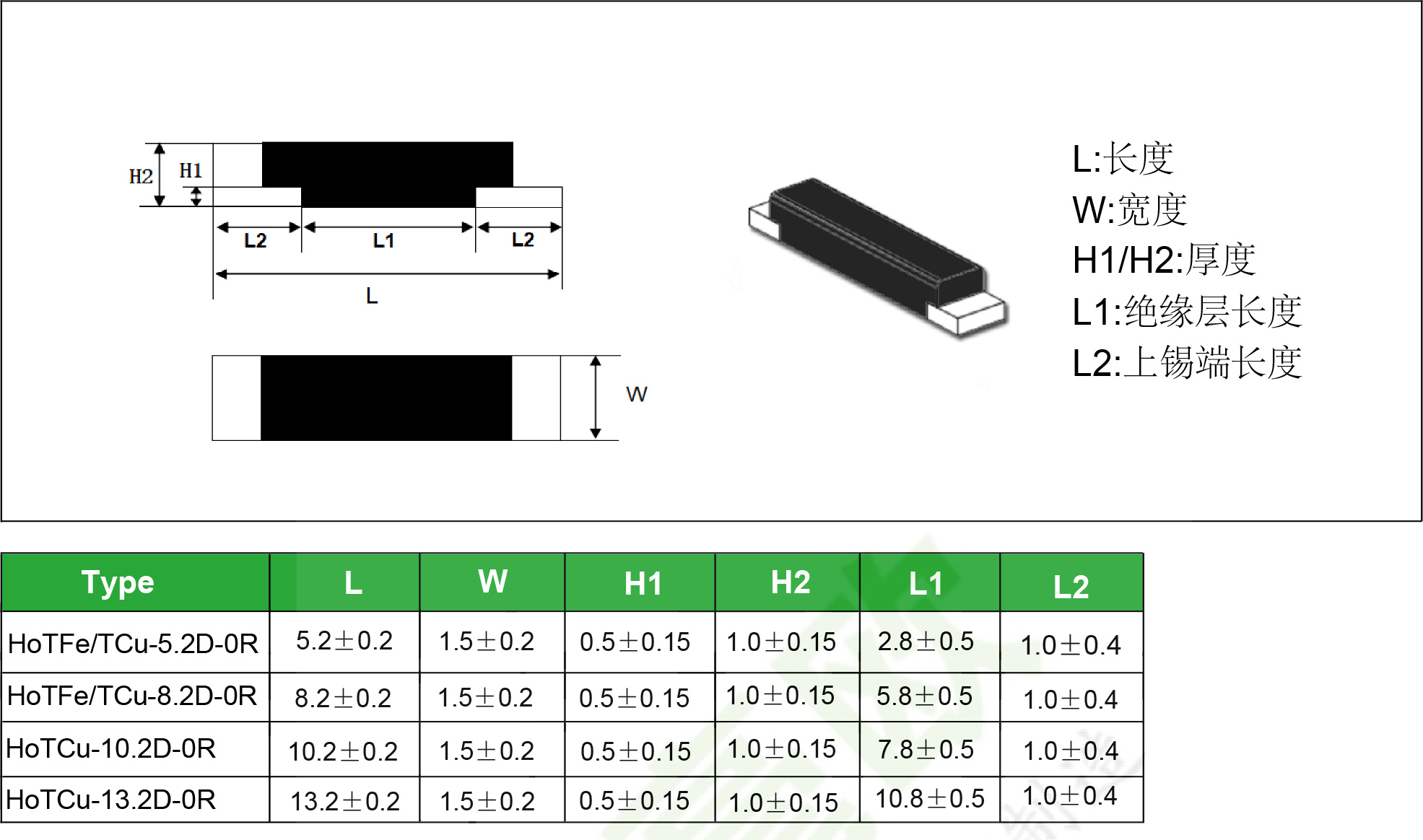

Product size:

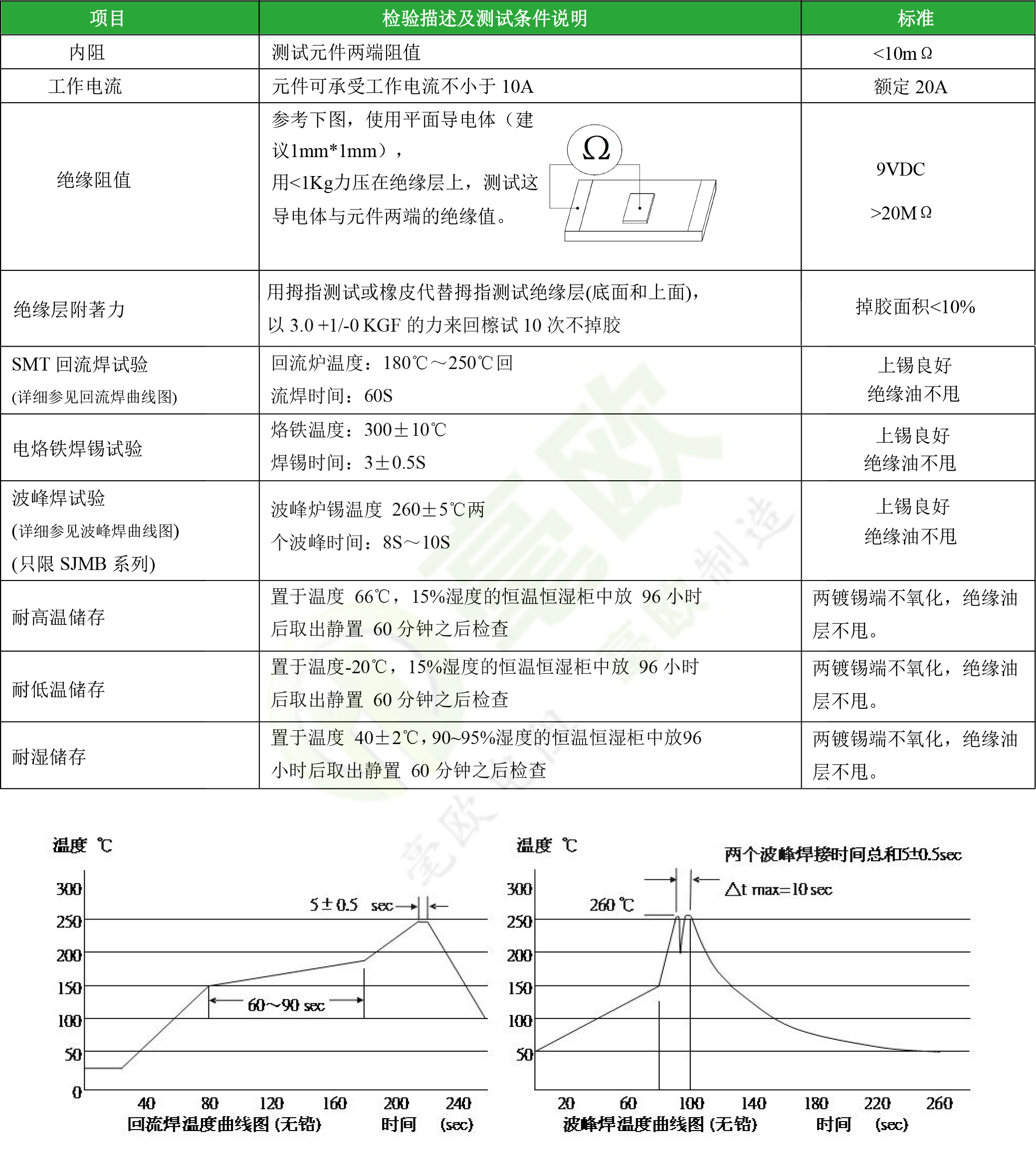

Electrical performance:
