Chip jumper resistance: ● Alloy sheet chip, intermediate insulation treatment of sealing process, good welding performance ● High reliability, high overload capacity, overload current 10A~30A ● Meet ROHS requirements and halogen-free requirements

Keywords:

Chip Jumper Resistors

Details Application Related
Product features:

1. Tin plating of alloy plate, intermediate insulation treatment of plastic sealing process, good welding performance
2. High reliability, high overload capacity, rated current 10-40A
3. Wide operating temperature range - 20~150 ℃, non-inductive design
4. Comply with ROHS requirements and halogen-free requirements

Product model:

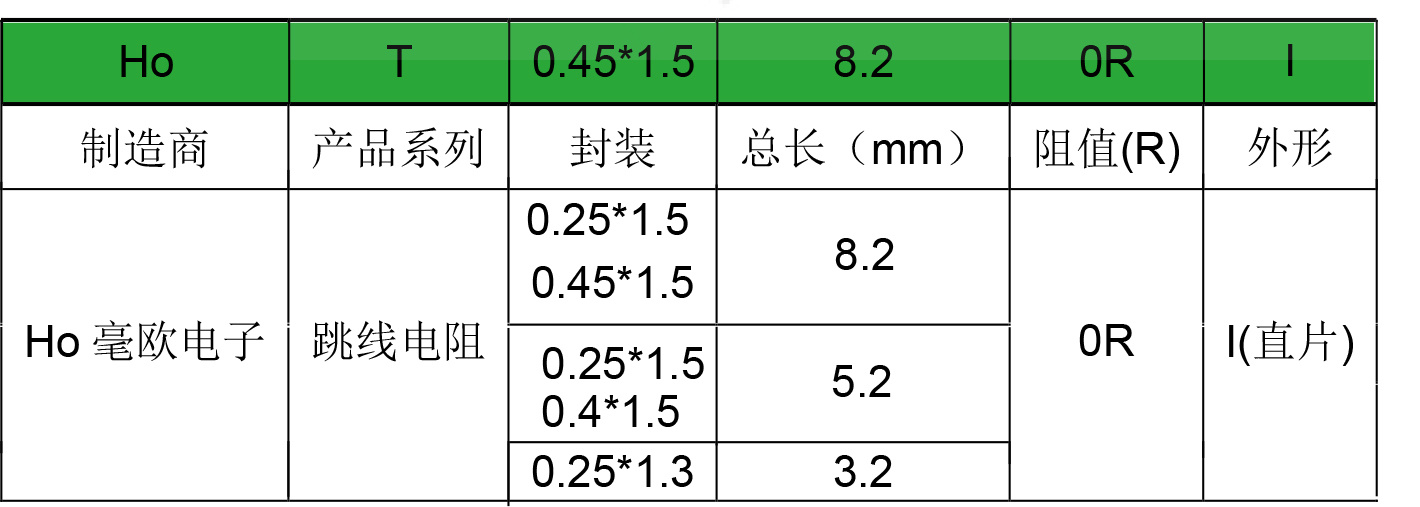

1. Product nominal:

 HoT-(0.45*1.5)-8.2-0R-I

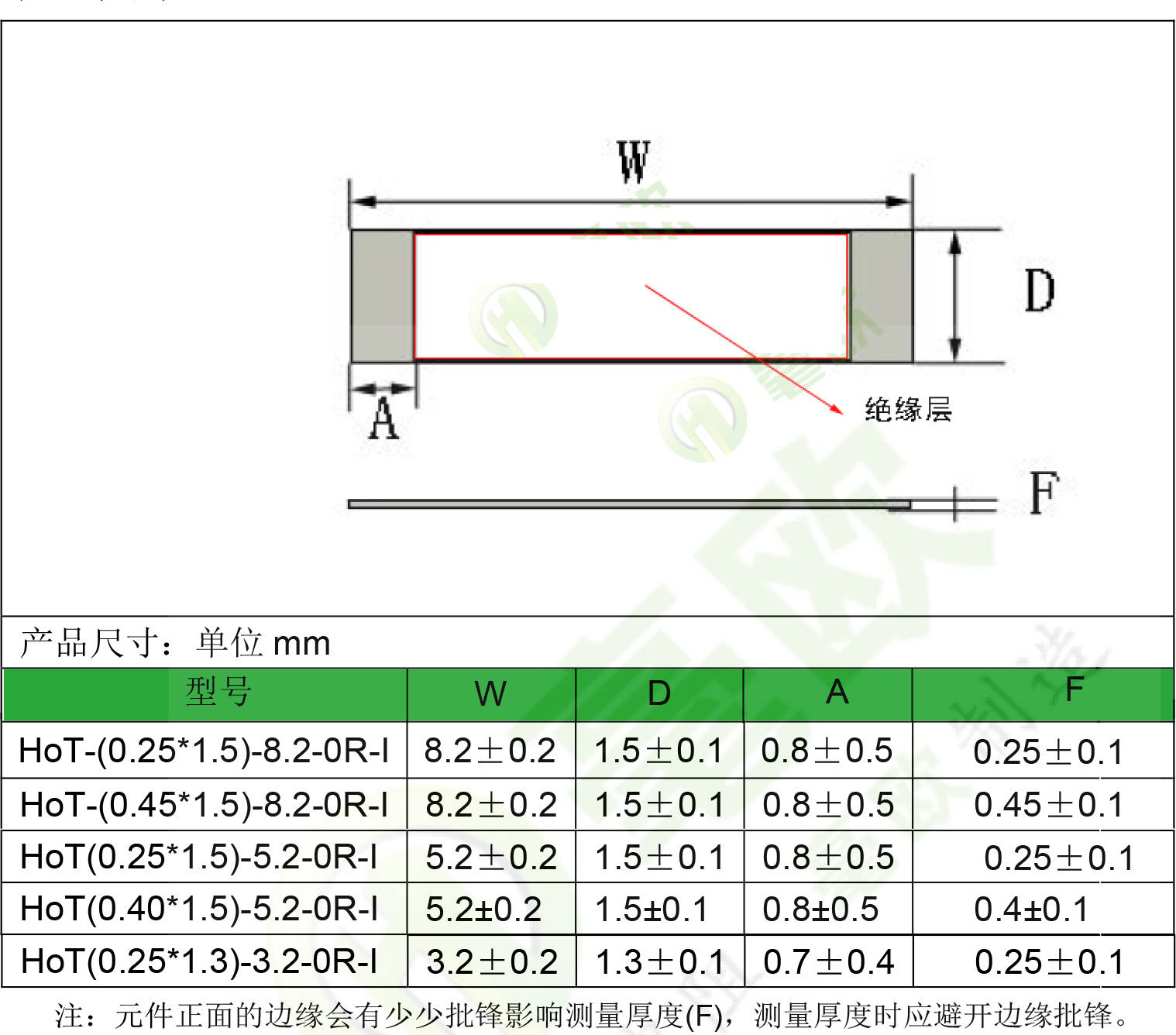

产品尺寸:

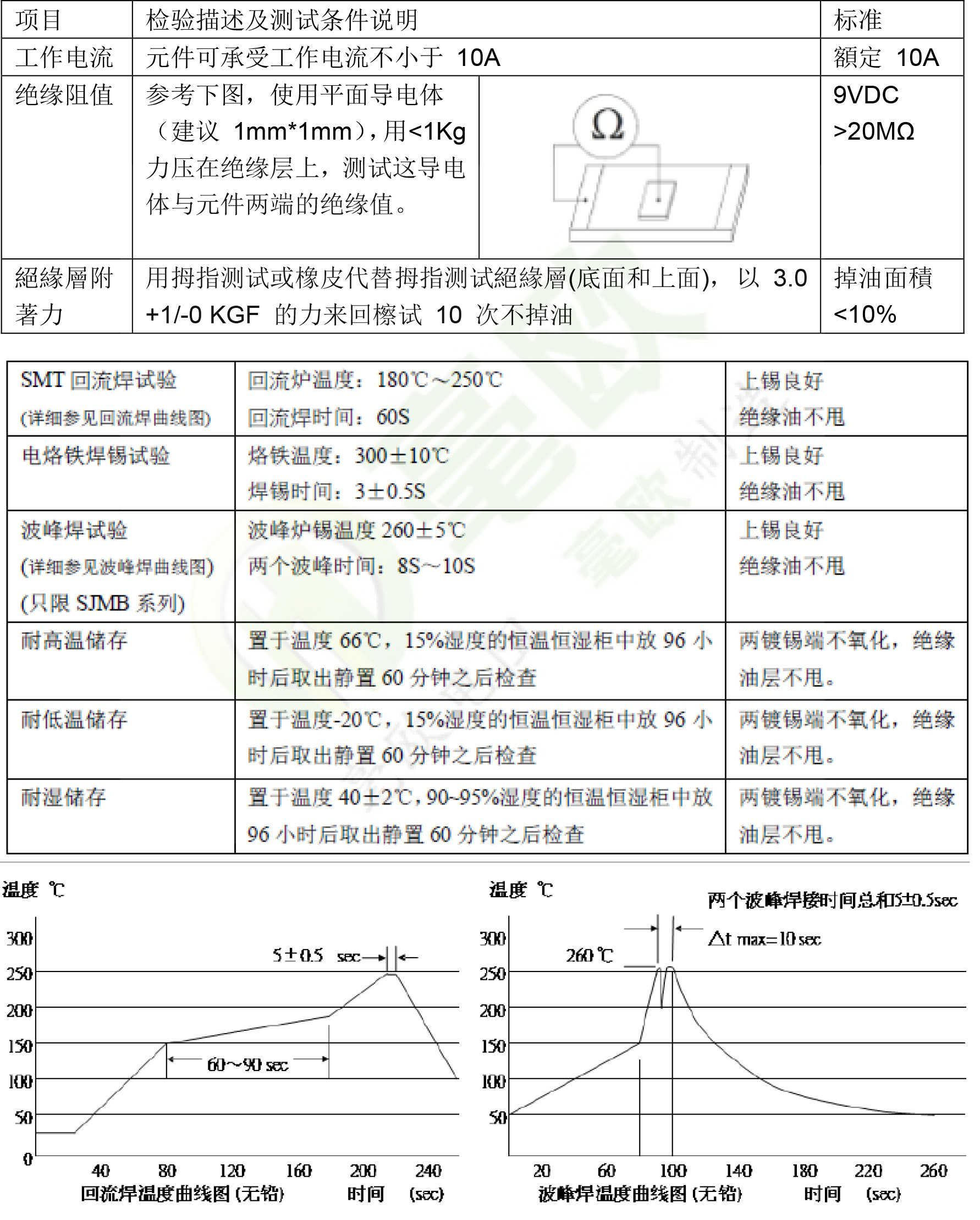

电气性能:
